Switchboard Upgrades Perth

Old fuses, no RCD protection, a board that trips from overload, or no room for new circuits. These are some of the common problems we see with switchboards, and our local team can sort out all of them.

Pictured: a new switchboard upgrade with clear labelling, more room for new circuits, and a safer setup for the homeowner.

Call 0415 203 286 Request a Quote
✓ Licensed EC 14977 ✓ Fully Insured ✓ No Call-Out Fee ✓ Free Quotes From a Photo
What’s Involved

What a Switchboard Upgrade Involves

  • A new switchboard to replace the old one
  • Modern circuit breakers with RCD protection, or individual RCBOs so one fault doesn’t take out the whole house
  • Clear labelling on every circuit
  • Spare poles left for future circuits, like an EV charger or air con
  • Full testing before we hand it back
  • An Electrical Safety Certificate when it’s done
Call 0415 203 286

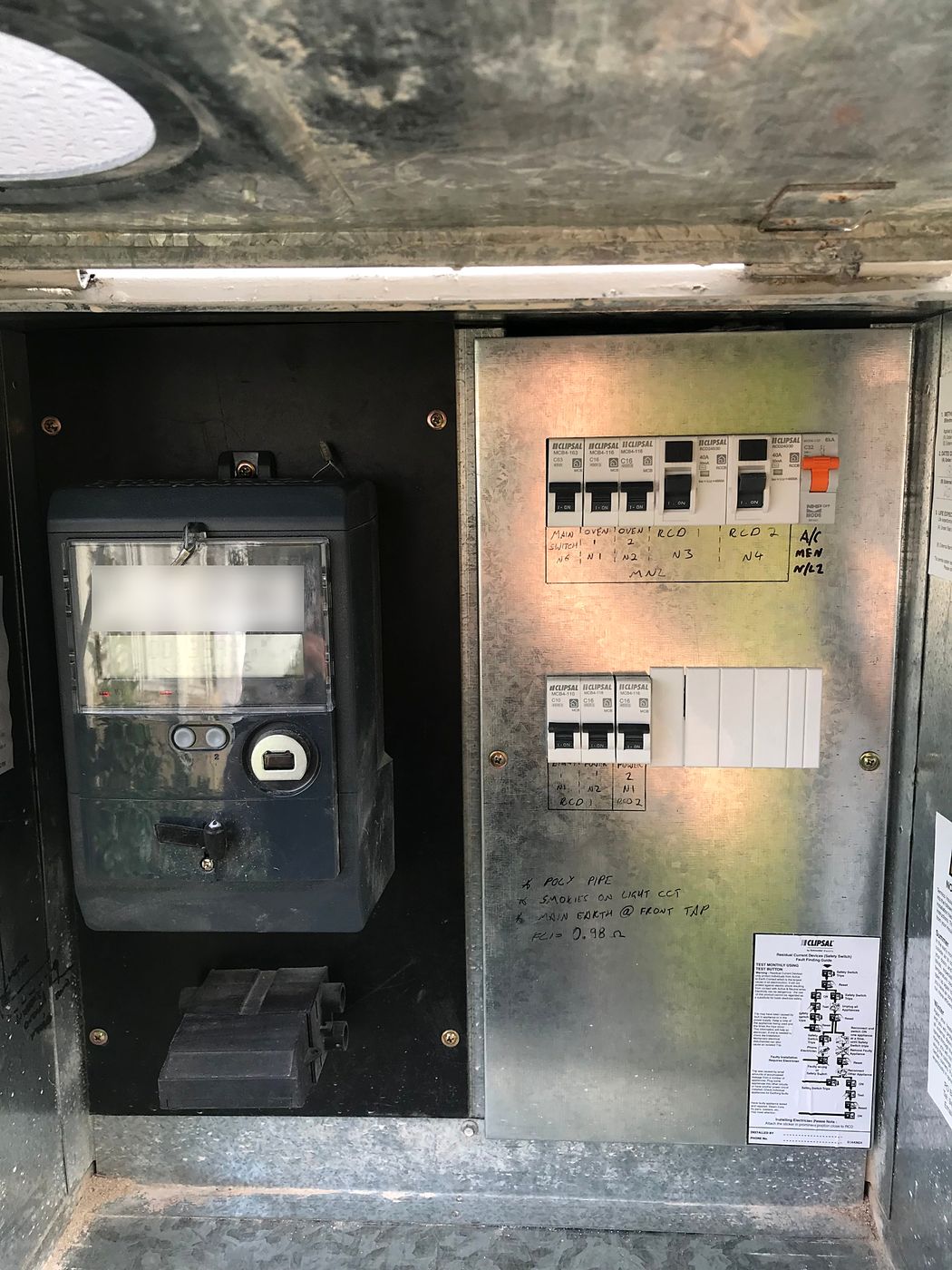

Finished switchboard upgrade with two RCDs, labelled circuits and spare poles beside the meter
A finished upgrade: two RCDs protecting the circuits, every circuit labelled, and spare poles left for later.
Signs to Look For

Is Your Board Due?

  • It still has old ceramic fuses
  • There are no RCDs, or one RCD covering every power circuit, so one fault trips the whole house
  • The power trips when you run the kettle and toaster together
  • There are no spare poles for a new circuit
  • You’ve noticed scorch marks, buzzing or a burning smell
  • You’re adding an EV charger, air con or solar

If you tick one or two of these, it’s worth a look. It doesn’t always mean a full upgrade.

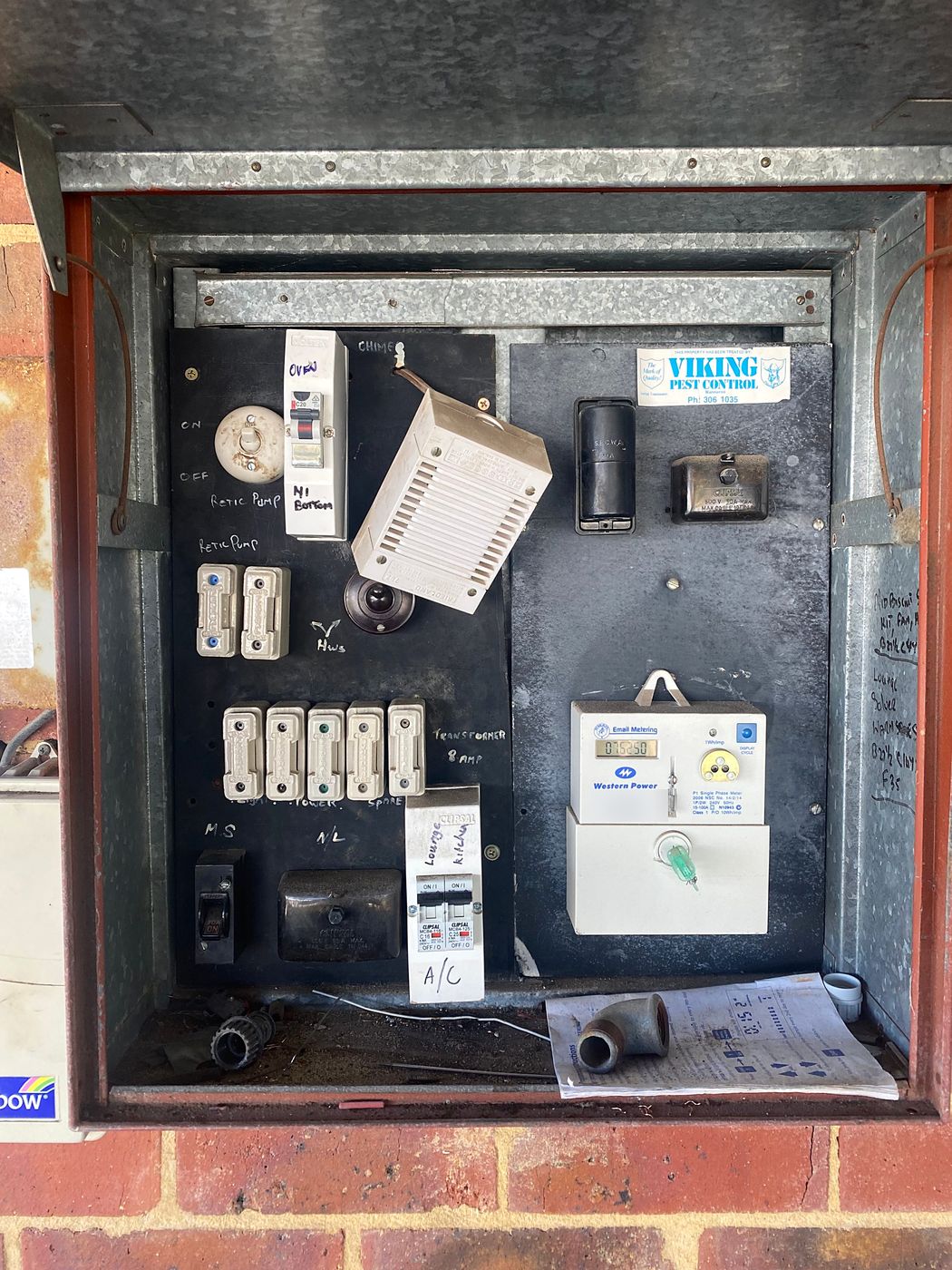

Old switchboard on an asbestos panel with rewireable fuses and no RCD protection
A board that’s due: rewireable fuses, no RCD protection, an asbestos panel, and breakers added over the years wherever they’d fit.
Older Homes

Asbestos Boards in Older Homes

A lot of older Perth homes have the switchboard mounted on a panel that contains asbestos. It’s usually stamped on the back of the panel, and we can confirm it on site. Please don’t pull the board apart to check.

An asbestos panel can’t just be drilled or modified to fit new gear. If yours is asbestos, we’ll tell you upfront and plan the upgrade around it, so it’s handled safely and properly from the start.

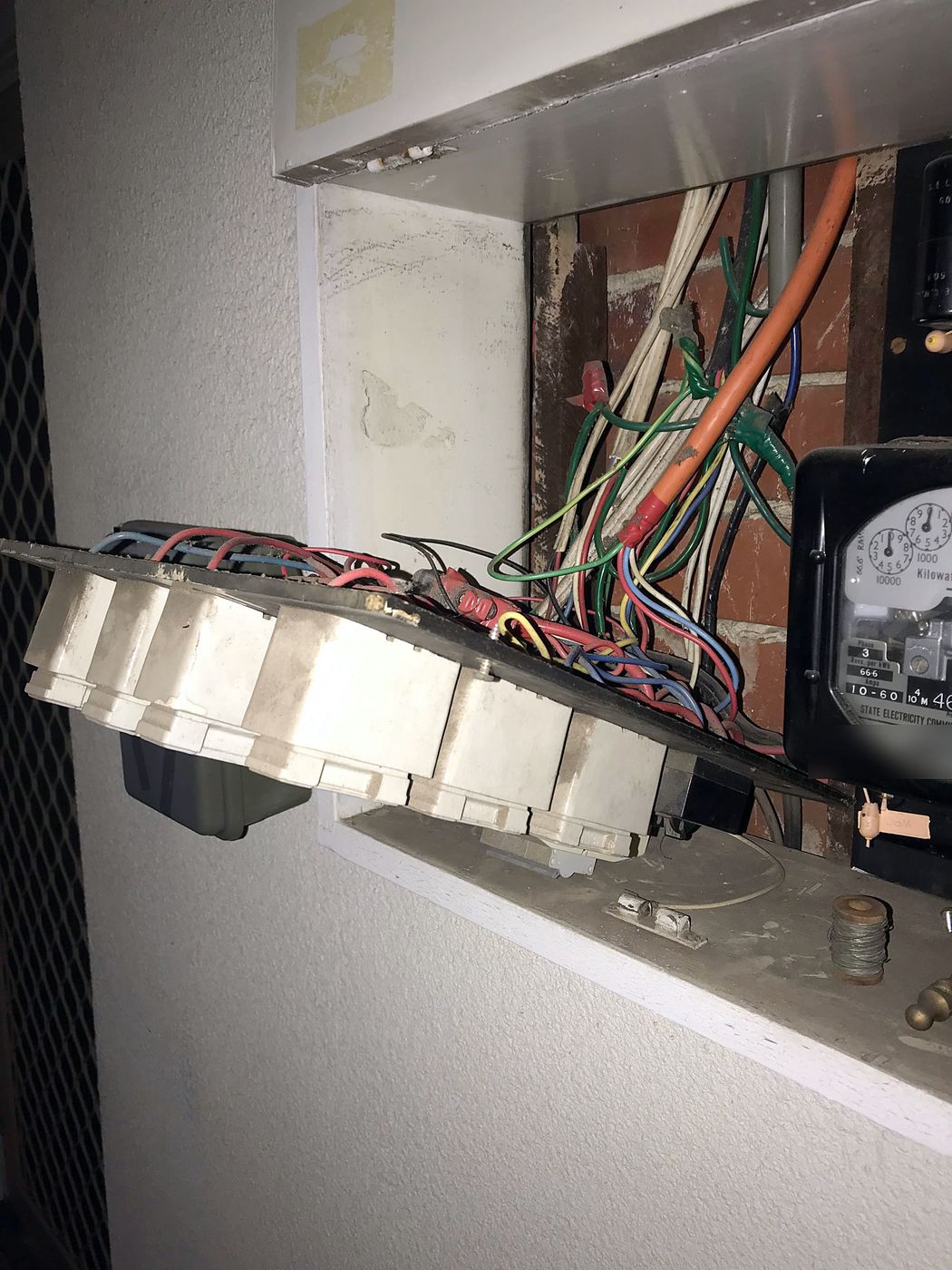

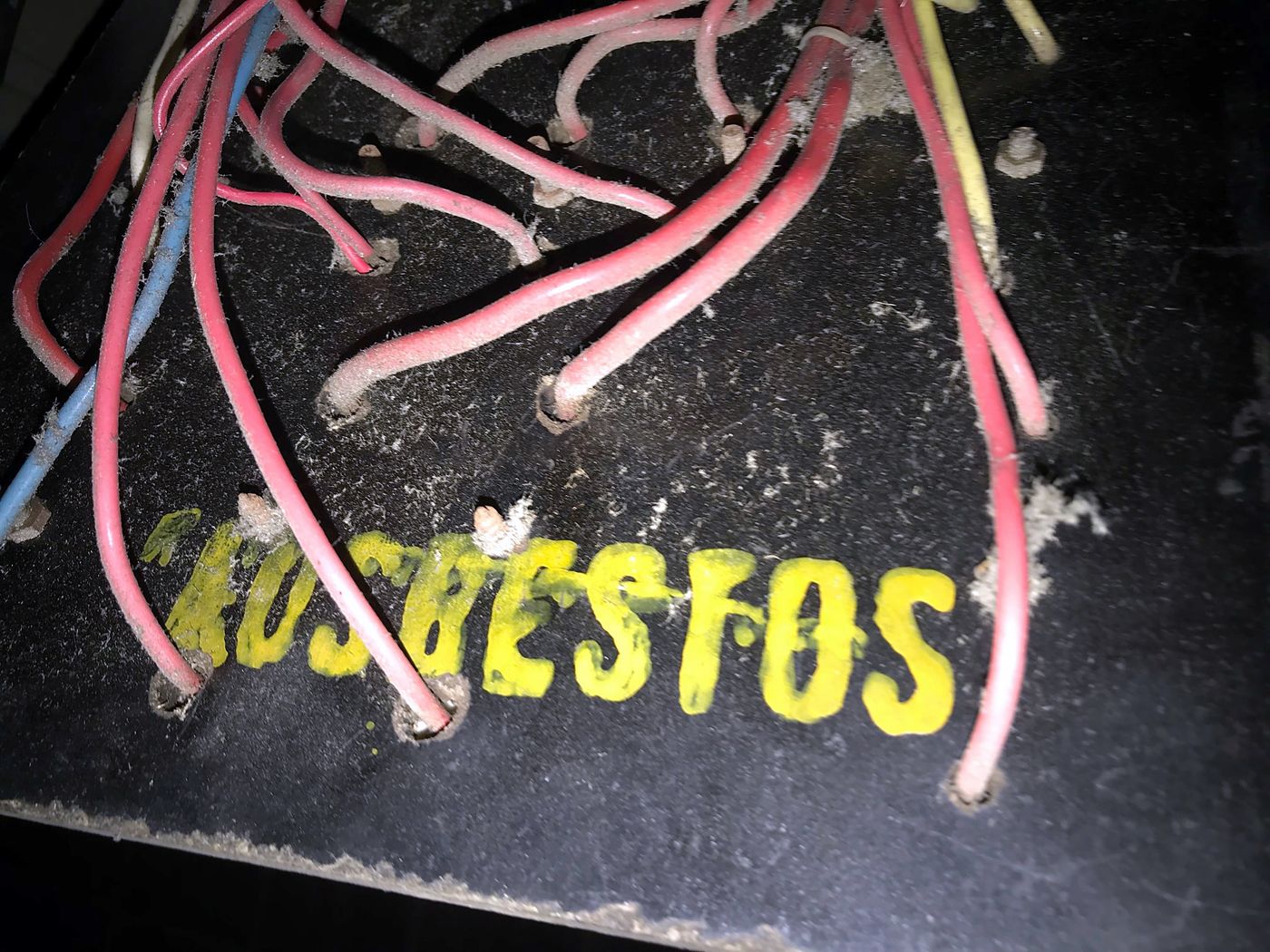

Old switchboard panel pulled forward from the meter box, showing old fuses and wiringASBESTOS stamped in yellow on the back of an old switchboard panel
An old board pulled forward from the meter box, with ASBESTOS stamped on the back of the panel. You’d never know from the front.
Pricing

What Affects the Cost

  • Number of circuits. More circuits means more breakers and more work.
  • An asbestos panel. It changes how the job is done.
  • The meter box and mains. If they’re old or damaged, they may need work too.
  • RCDs or RCBOs. Individual RCBOs on each circuit cost a bit more, but a fault only trips the circuit it’s on.
  • Extras. Surge protection, or new circuits for an EV charger or air con.

Every board is different, so the easiest way to get a price is to send us a photo of yours with the door open. We’ll quote it over the phone, and confirm it in writing before any work starts.

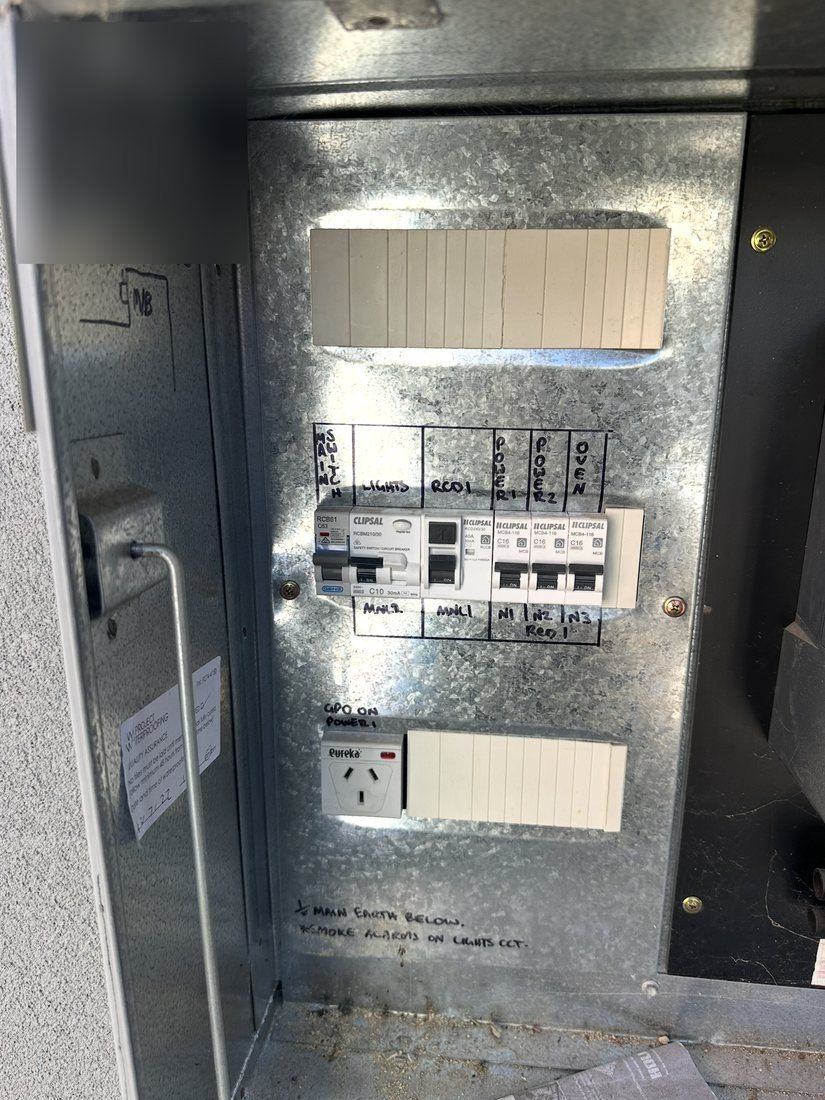

Upgraded switchboard with circuit breakers, RCD protection and spare poles in a galvanised meter box
One of our upgrades in a galvanised meter box, with spare poles left for new circuits.
WA Rules

Switchboard Requirements and Safety Rules in WA

Selling or renting soon? Our guide on smoke alarm and RCD rules in WA covers what you need. Getting an EV? Read do I need a switchboard upgrade for an EV charger?

Not sure about your board? Send us a photo with the door open. We’ll tell you whether it’s fine as it is or needs work, and we won’t sell you an upgrade you don’t need.

← Back to all electrical services

EV Charger Installation →

Thermal Imaging for Switchboards →
Client Reviews

What Our Clients Say

Rated 4.9 ★ from 120+ Google reviews

GoogleExcellent★★★★★4.9 from 120+ reviewsWrite a review
J
Jamie C.Oct 2026
★★★★★✓
“Very happy with the service provided. The team was very prompt, responsive, and easy to deal with from start to finish. Communication was excellent, and everything was handled efficiently and professionally. It made the whole process hassle-free. Would definitely recommend them to anyone looking for a reliable electrical company!”
C
Caryl H.Oct 2026
★★★★★✓
“Have used M Tech previously and cannot fault them. They are super friendly and do an excellent job every time. Their response time is very quick and they communicate really well. Highly recommend.”
B
Beatrice H.Sep 2026
★★★★★✓
“Good communication and work quality. Was able to problem solve when issues arose when installing our new oven in existing cabinetry which made the job more time consuming but done that day smoothly. Would recommend.”
See All Reviews on Google

Thinking about a switchboard upgrade?

Call 0415 203 286 Request a Quote
Common Questions

Switchboard Upgrade FAQs

How long does a switchboard upgrade take? +

Most are done in a day. The power is off while the board is changed over, and we'll tell you beforehand roughly how long so you can plan around it.

Does my board actually need upgrading? +

Not always. If your board has RCD protection, no old fuses and room for what you want to add, it may be fine as it is. Send us a photo and we'll tell you honestly.

I'm getting an EV charger. Will I need a new board? +

Sometimes. A charger needs its own circuit and RCD protection, so it comes down to whether your board has a spare pole and is in good shape. Our guide on EV chargers and switchboards explains what to look for.

Is there a call-out fee? +

No. Most switchboards can be quoted from a photo, and you'll get the price in writing before any work starts.
